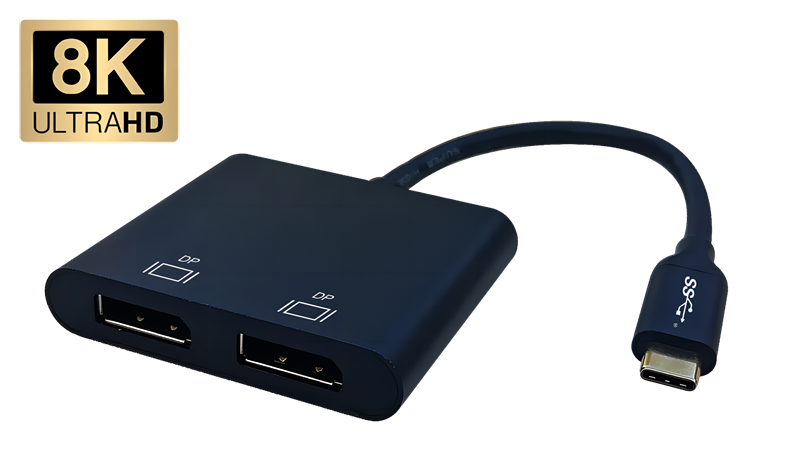

USBC-2DP-AL

  • USB-C 8K To 2*DisplayPort Adapter Cable
  • Connector 1: USB TYPE C male gold plated
  • Connector 2: DisplayPort female gold plated x 2
  • Cable length: 10cm
  • Wire guage: 32AWG

Description:

Description

USB-C 8K To 2*DisplayPort Adapter Cable

Material: Aluminum shell

Input: USB-C

Output: 2*DisplayPort1.4

Max Resolution: Single display 8K@60Hz (with DSC)  8K@30Hz (without DSC)

              Dual display 2*5K@60Hz (with DSC)  2*4K@60Hz(without DSC)

              Support SST/MST function



Feature:

1. Max data transmission rate: 32.4 Gbit/s (8.1 Gbps each channel)

2. Supports VESA Display Stream Compression (DSC) version 1.2 transport

3. Supports both HDCP 1.4 & HDCP2.3 with on-chip keys to support HDCP repeater

4. Supports up to 3840x2160@60Hz or 4096x2160@60Hz (w/o DSC)

5. Supports up to 7680x4320@60Hz with DSC

6. Supports RGB 4:4:4 6/8/10/12 bit per component (bpc) and YCbC 4:4:4, YCbCr 4:2:2, 4:2:0 8/10/12-bit bpc.

7. Supports High Dynamic Range (HDR) transport.

8. Supports receives Single Stream Transport (SST) or Multi-Stream Transport (MST).
